CQ654A HP DesignJet HD Roll Scanner

HP DesignJet HD Roll Scanner CQ654A


Options for CQ654A:
Recertified $14,823.05
Status: Available
Condition: OEM

Your Price:   $17,438.88

Qty:
Care Pack
Cover

HP DesignJet HD Roll Scanner



Manufacture:

HP


MPN: CQ654A
Description:

HP DesignJet HD Roll Scanner


Condition: OEM
Warranty: 1 year warranty with OEM supplies from the manufacture.
Product Options:

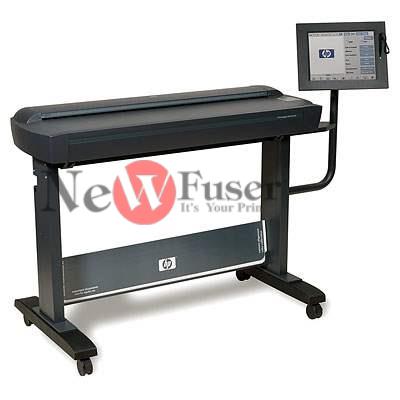

Image/s:
CQ654A

All Images are subject to correction, more than one part number may share the same image.

Product Tags: CQ654A Plotter CQ654A
Certificates
Certification
EU RoHS;REACH;WEEE
Electromagnetic compatibility
Compliance for Class A ITE products: EU (EMC Directive)
Energy Star certified
N
Energy Star certified
N
Electromagnetic compatibility
Compliance for Class A ITE products: EU (EMC Directive)
Certification
EU RoHS;REACH;WEEE
Design
Display
LCD
Scanner type
Sheet-fed
Scanner type
Sheet-fed
Display
LCD
Operational conditions
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-25 - 55 ░C
Operating temperature (T-T)
5 - 40 ░C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
59 - 95 ░F
Operating temperature (T-T)
5 - 40 ░C
Storage temperature (T-T)
-25 - 55 ░C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
59 - 95 ░F
Other features
Maximum scan area
106.68 cm (42")
Package dimensions (W x D x H)
1910.1 x 680 x 760 mm (75.2 x 26.77 x 29.92")
Weight
92.5 kg (204 lbs)
Functions
Copy, scan
Acoustic pressure emissions (standby)
25 dB(A)
Acoustic power emissions (standby)
4.4 B(A)
Media thickness (imperial)
1.52 cm (0.6")
Copy quality (colour, draft)
150 x 150 dpi
Minimum scan area
152.4 x 114.3 mm (6 x 4.5")
Package weight
140.2 kg (309 lbs)
Linear scan speed (imperial)
Up to 3 in/sec (color, 200 dpi/400 dpi Turbo);up to 10 in/sec (black-and-white, 200 dpi/400 dpi Turbo)
Remote network printer supported
HP Designjet 5x0/800, 10xx, 40x0/45x0, 5x00, T6 x 0/T1 xx0 /T 7x0, Z2100/Z3x00, and Z6100 series products
Dimensions (WxDxH)
1800 x 850 x 1380 mm
I/O ports
1 x RJ-45\n1 x USB 2.0\n1 x IEEE-1394a
Recommended operating temperature range (T-T)
15 - 35 ░C
Media types supported
Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard (No plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)
Scan input modes
On the touchscreen: scan preview, scan to file, scan to DVD/CD, scan to USB, scan to print, collate copy, copy, batch scanning, batch copying, print from list
Package dimensions (WxDxH)
1910 x 680 x 760 mm
Acoustic pressure emissions
47 dB
Safety
EU (LVD and EN60950-1 compliant);Russia (GOST)
Acoustic power emissions
6.3 B(A)
Copy resolution (colour text and graphics)
9600 DPI
Minimum scan size
152 x 114 mm
Power requirements
Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz, 5 A max
Network ready
Y
Networking features
Gigabit Ethernet
Maximum internal memory
1 GB
Scan quality (colour, best)
300 DPI
Scan quality (colour, normal)
200 DPI
Maximum media width
1067 mm
Dimensions (W x D x H)
106.7 cm
Copier settings
Type of original;image crop and align preview;lightness;saturation and RGB controls;sharpen/blur;mirror copy;enlarge/reduce;paneling;tiling;nesting;accounting;batch
Maximum number of copies
1000 copies
Linear scan speed (metric)
Colour (200 dpi/400 dpi Turbo): up to 8 cm/sec;Black and white (200 dpi/400 dpi Turbo): up to 25 cm/sec
Media handling
Straight-through scan paper path for sheet and cardboard originals
Scan quality (colour, draft)
150 DPI
Network ready
Y
Dimensions (WxDxH)
1800 x 850 x 1380 mm
Package dimensions (WxDxH)
1910 x 680 x 760 mm
Power requirements
Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz, 5 A max
Safety
EU (LVD and EN60950-1 compliant);Russia (GOST)
Networking features
Gigabit Ethernet
Maximum media width
1067 mm
Media types supported
Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard (No plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)
Functions
Copy, scan
Maximum internal memory
1 GB
Maximum number of copies
1000 copies
Media thickness (imperial)
1.52 cm (0.6")
Scan input modes
On the touchscreen: scan preview, scan to file, scan to DVD/CD, scan to USB, scan to print, collate copy, copy, batch scanning, batch copying, print from list
I/O ports
1 x RJ-45\n1 x USB 2.0\n1 x IEEE-1394a
Recommended operating temperature range (T-T)
15 - 35 ░C
Minimum scan size
152 x 114 mm
Scan quality (colour, best)
300 DPI
Scan quality (colour, draft)
150 DPI
Maximum scan area
106.68 cm (42")
Package dimensions (W x D x H)
1910.1 x 680 x 760 mm (75.2 x 26.77 x 29.92")
Package weight
140.2 kg (309 lbs)
Weight
92.5 kg (204 lbs)
Acoustic power emissions
6.3 B(A)
Acoustic pressure emissions (standby)
25 dB(A)
Acoustic pressure emissions
47 dB
Copier settings
Type of original;image crop and align preview;lightness;saturation and RGB controls;sharpen/blur;mirror copy;enlarge/reduce;paneling;tiling;nesting;accounting;batch
Copy quality (colour, draft)
150 x 150 dpi
Copy resolution (colour text and graphics)
9600 DPI
Linear scan speed (imperial)
Up to 3 in/sec (color, 200 dpi/400 dpi Turbo);up to 10 in/sec (black-and-white, 200 dpi/400 dpi Turbo)
Linear scan speed (metric)
Colour (200 dpi/400 dpi Turbo): up to 8 cm/sec;Black and white (200 dpi/400 dpi Turbo): up to 25 cm/sec
Media handling
Straight-through scan paper path for sheet and cardboard originals
Minimum scan area
152.4 x 114.3 mm (6 x 4.5")
Remote network printer supported
HP Designjet 5x0/800, 10xx, 40x0/45x0, 5x00, T6 x 0/T1 xx0 /T 7x0, Z2100/Z3x00, and Z6100 series products
Scan quality (colour, normal)
200 DPI
Acoustic power emissions (standby)
4.4 B(A)
Dimensions (W x D x H)
106.7 cm
Packaging content
Bundled software
System recovery software for the scanning system, including HP Macroinstaller with Windows drivers for HP Designjet 5x0, 800, 1xx0, 4xx0, 5x00, T6x0, T1xx0, Zxx00 series products
Bundled software
System recovery software for the scanning system, including HP Macroinstaller with Windows drivers for HP Designjet 5x0, 800, 1xx0, 4xx0, 5x00, T6x0, T1xx0, Zxx00 series products
Performance
Processor frequency
2800 MHz
Internal memory
1024 MB
Built-in processor
Intel Pentium 4
Scan file formats
TIFF
Scan file formats
TIFF
Internal memory
1024 MB
Built-in processor
Intel Pentium 4
Processor frequency
2800 MHz
Scanning
Optical scanning resolution
600 x 600 DPI
Colour scanning
Y
Film scanning
N
Optical scanning resolution
600 x 600 DPI
Colour scanning
Y
Film scanning
N
Weight & dimensions
Weight
92.5 kg
Package weight
140 kg
Weight
92.5 kg
Package weight
140 kg
